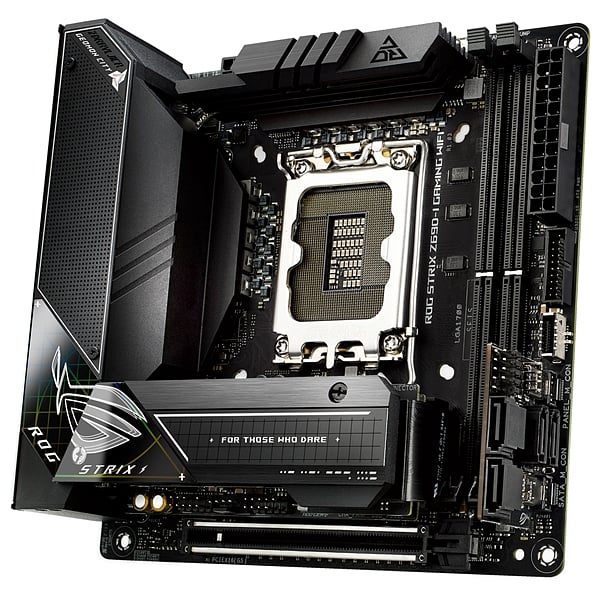

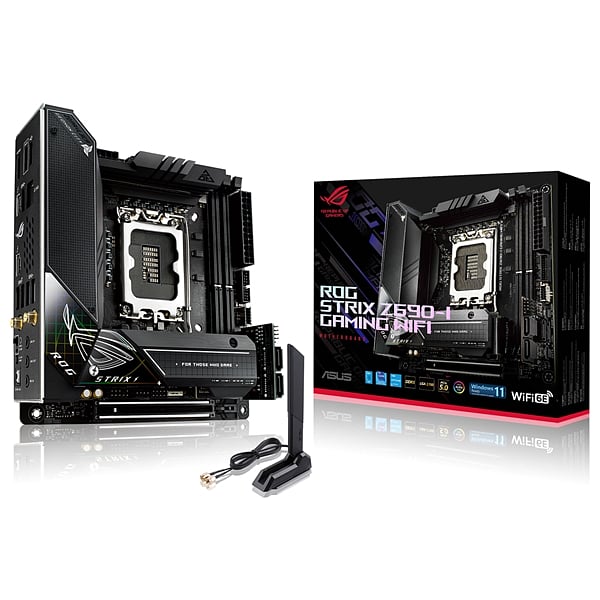

Asus ROG Strix Z690-I Gaming ITX / WiFi AX / DDR5 – Placa Base Intel 1700

Descripción del producto

ROG STRIX Z690-I GAMING WIFI

Tipo de producto

Placa Base

Chipset

Intel Z690

Socket

Intel Socket LGA1700 para procesadores de 12ª Generación Intel Core, Pentium Gold y Celeron.

Formato

Mini ITX

Memoria RAM

2 X DIMM 288 pins (DDR5) 4800 MHz / 5000 MHz / 5200 MHz / 5400 MHz / 5600 MHz / 5800 MHz / 6000 MHz / 6200 MHz / 6400 MHz

Memoria máxima

64 GB

Socket M.2

2 x Ranuras M.2
4 x Puertos SATA 6Gb/s

Red

1 x Intel® 2.5Gb Ethernet
Intel® Wi-Fi 6E
«Wi-Fi 6E


2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band*


Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. «

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
7.1 canales

Puertos USB

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Conectores internos

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x 2 pin POWER_BTN header
2 x USB Type-C® connectors to Install ROG Strix Front panel SATA card*
* Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports, 1 x Addressable Gen 2 header, 1 x Front Panel header and 1 x Speaker header.

Panel trasero

2 x Thunderbolt™ 4 USB Type-C® port(s)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
