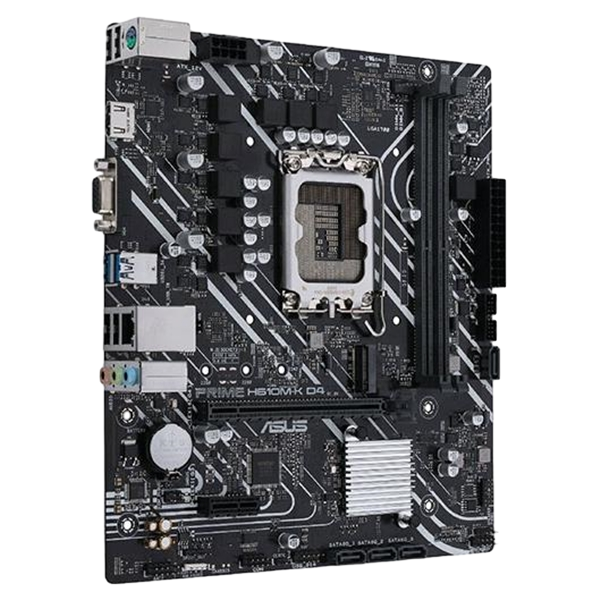

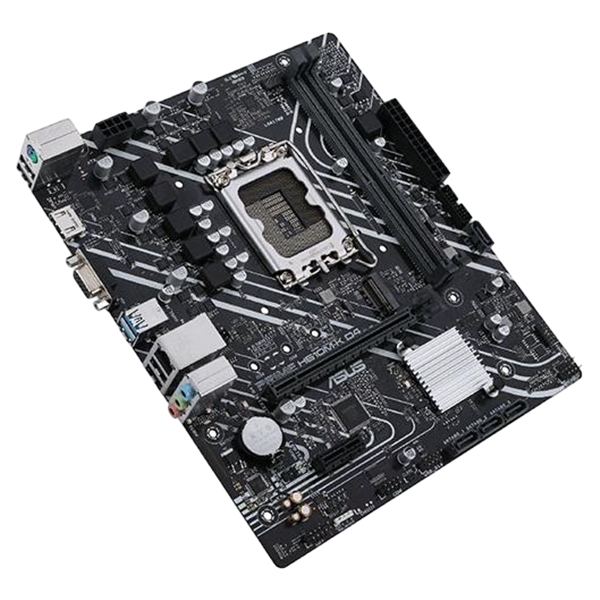

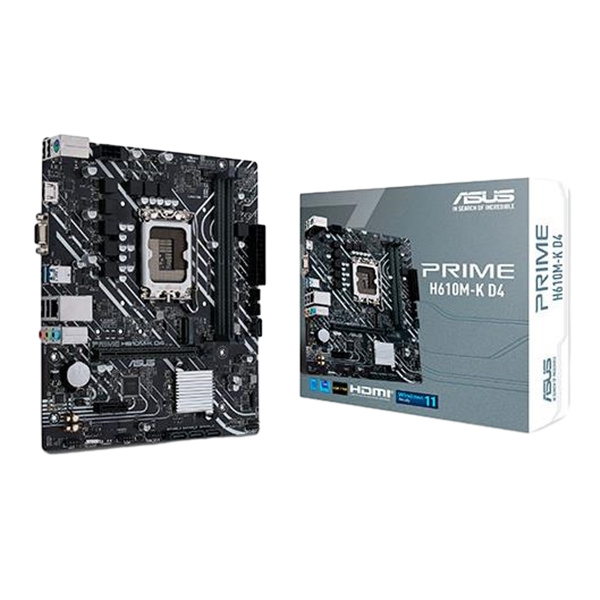

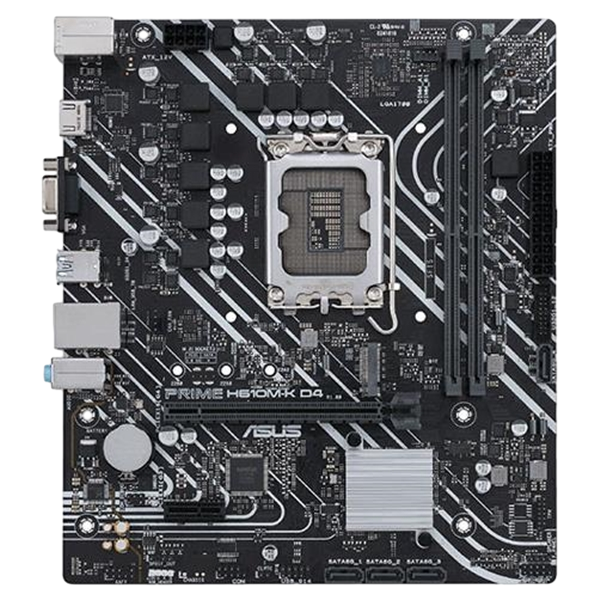

Asus Prime H610M-K DDR4 – Placa Base Intel 1700

Descripción del producto

Asus Prime H610M-K DDR4 – Placa Base Intel 1700

Tipo de producto

Placa Base

Chipset

Intel H610 Chipset

Socket

Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Formato

MATX

Memoria RAM

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Memoria máxima

Memoria máxima de 64 GB

Socket M.2

1 x M.2 slot and 4 x SATA 6Gb/s ports

Red

1 x Realtek 1Gb Ethernet

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Puertos USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Conectores internos

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

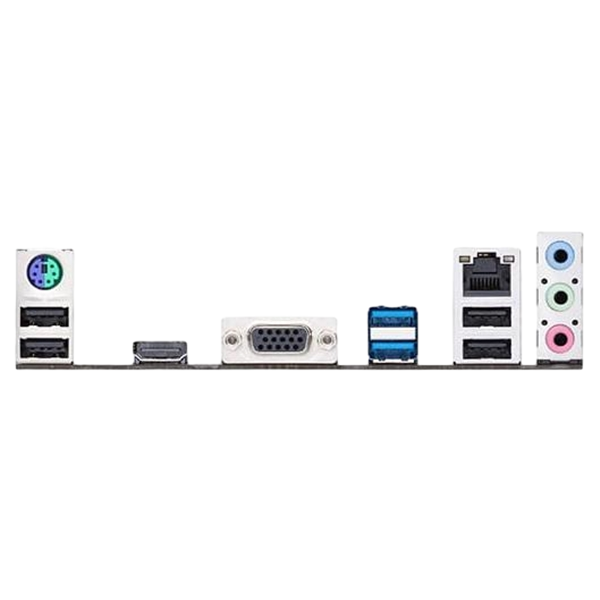

Panel trasero

2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
