Asus Prime H770-Plus / DDR4 – Placa Base Intel 1700

Descripción del producto

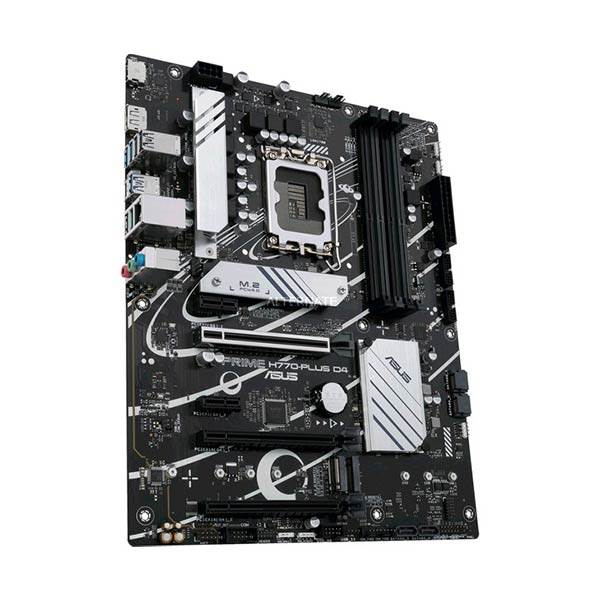

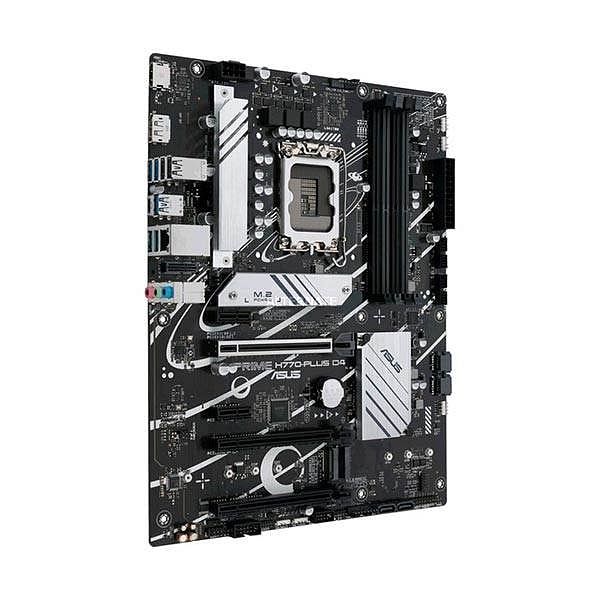

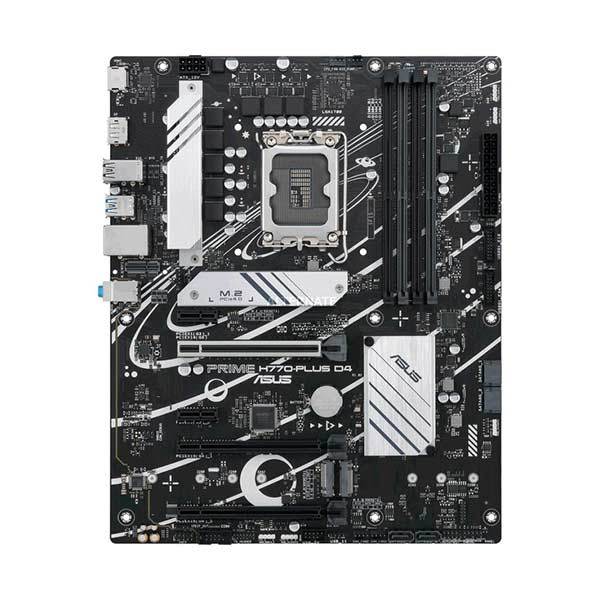

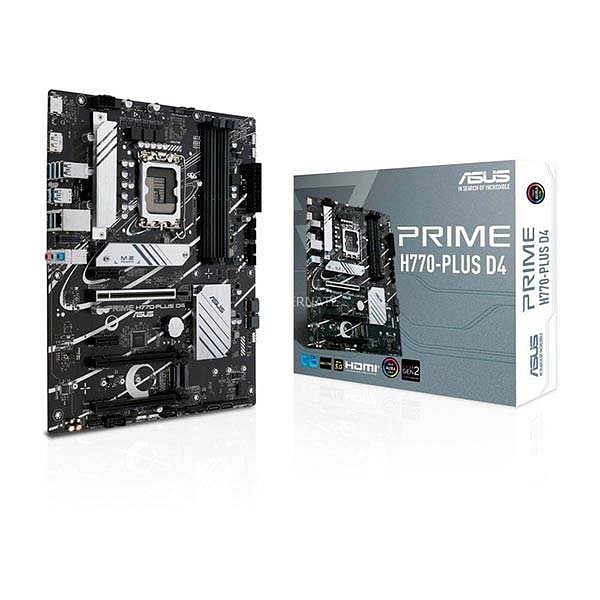

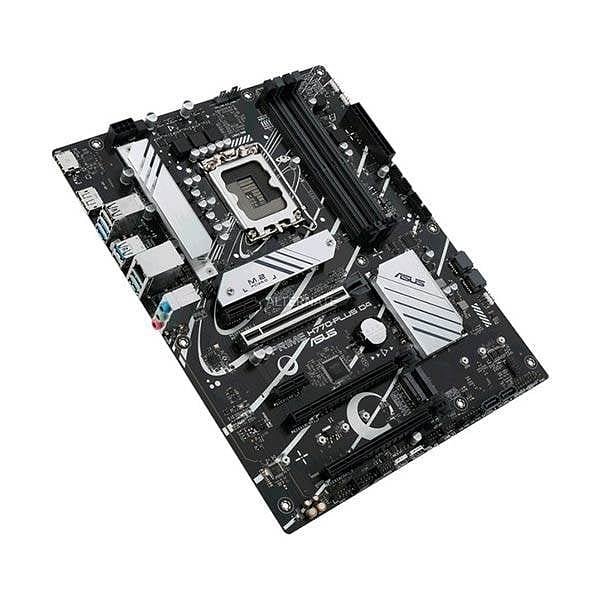

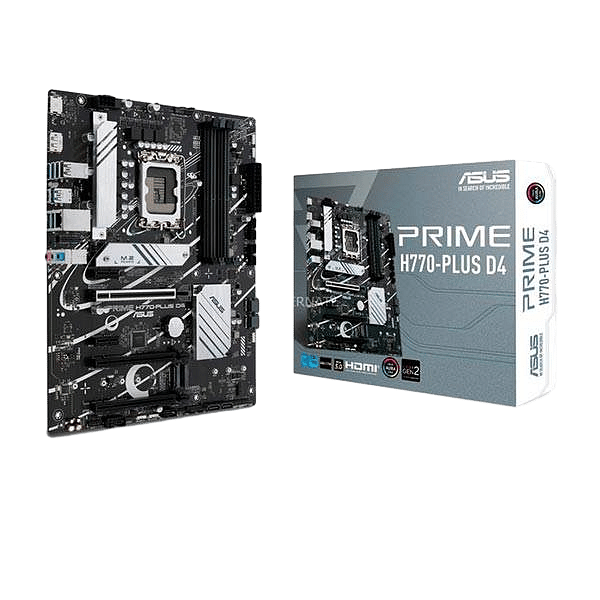

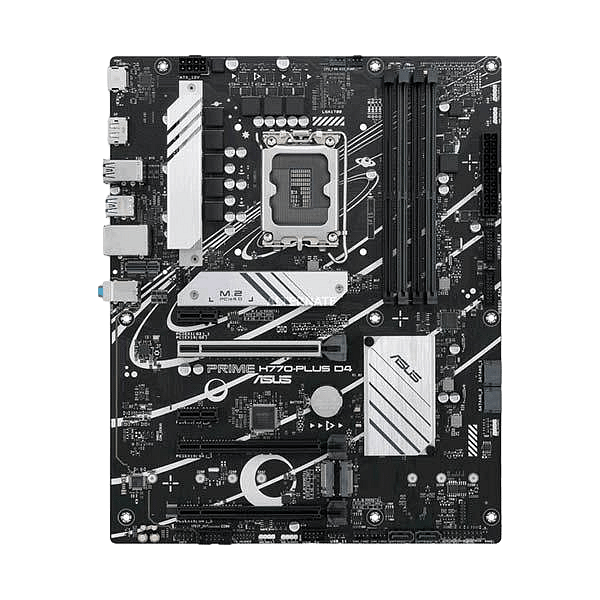

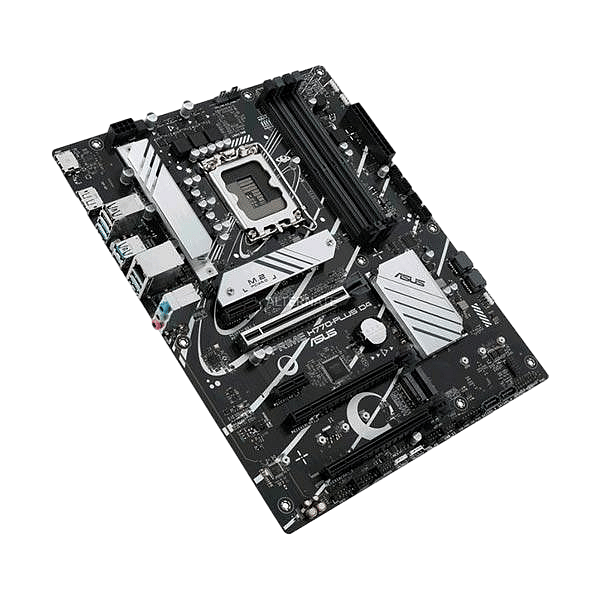

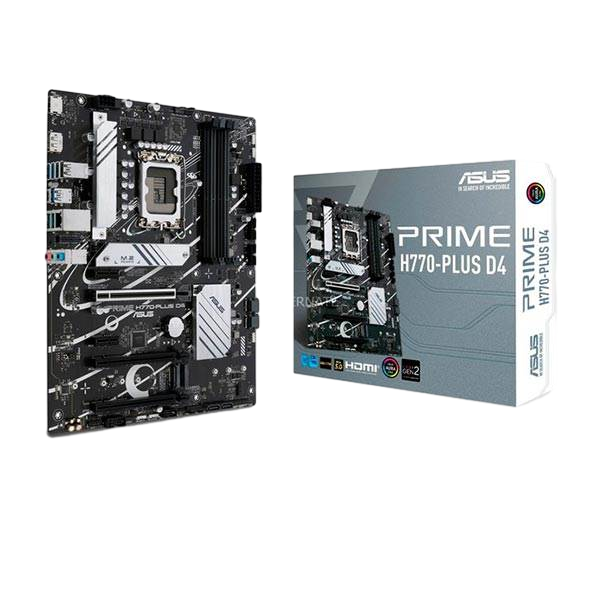

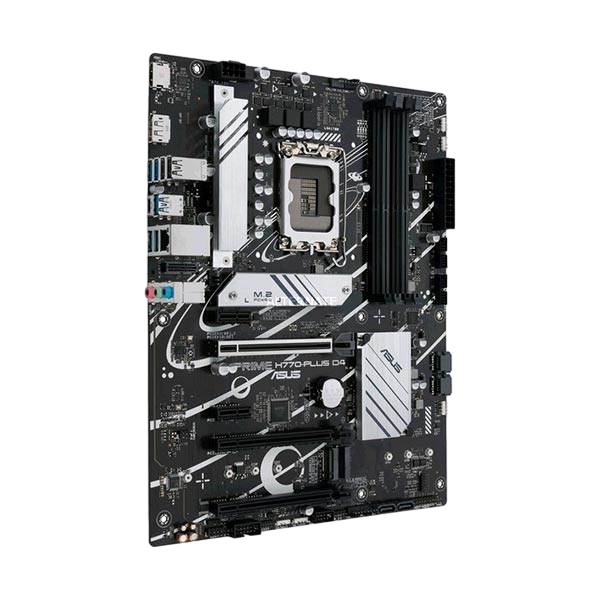

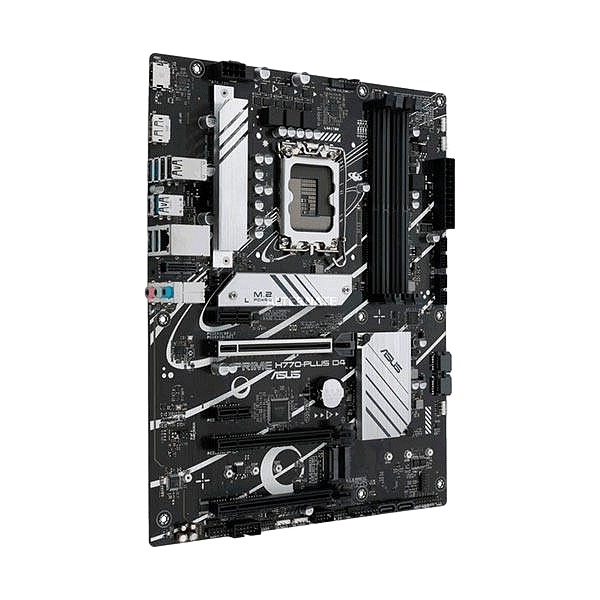

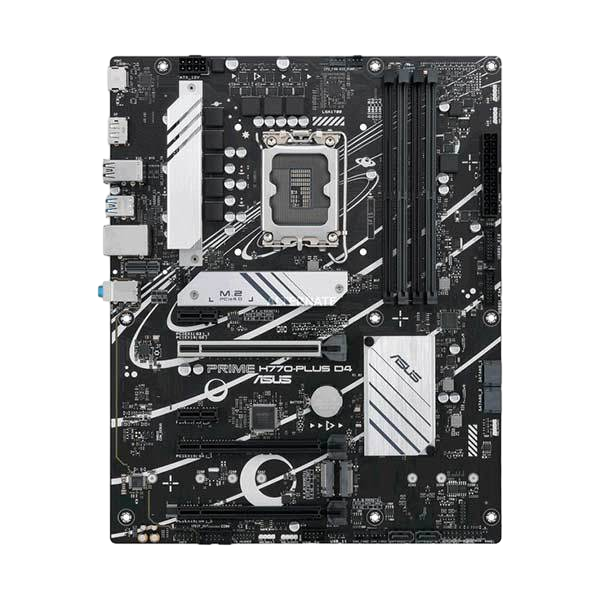

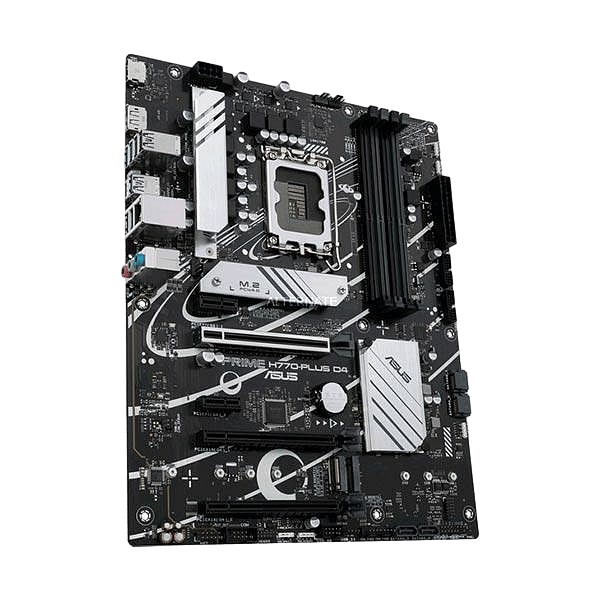

Asus Prime H770-Plus D4 – Placa Base Intel 1700

Tipo de producto

Placa Base

Chipset

Intel® H770 Chipset

Socket

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Formato

ATX

Memoria RAM

4 x DIMM,DDR4

Memoria máxima

Max. 128GB

Socket M.2

3

Red

1 x Realtek 2.5Gb Ethernet

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Puertos USB

Rear USB (Total 8 ports)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Conectores internos

ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

Panel trasero

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
