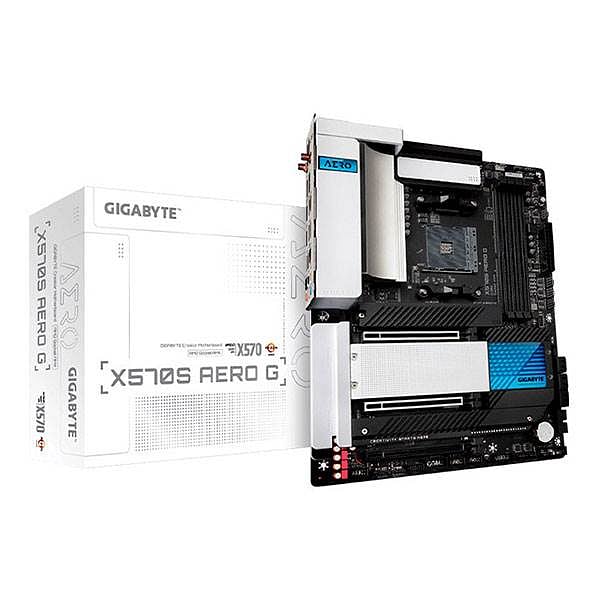

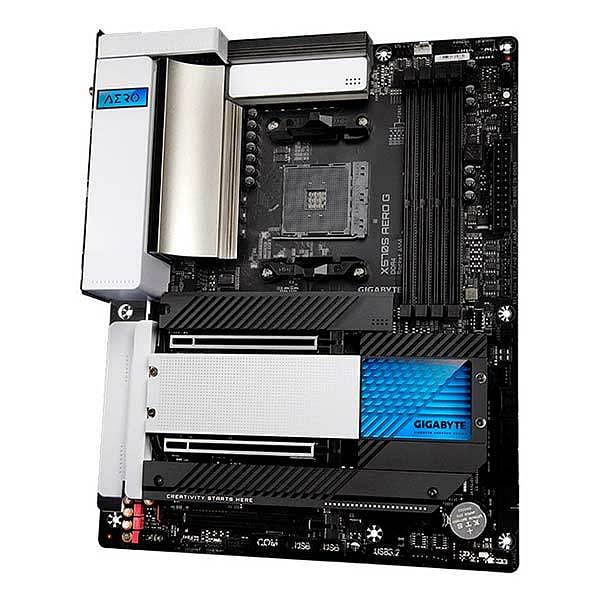

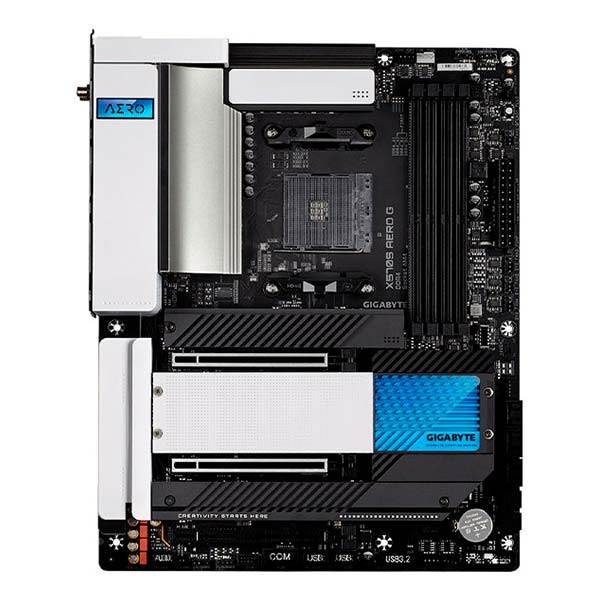

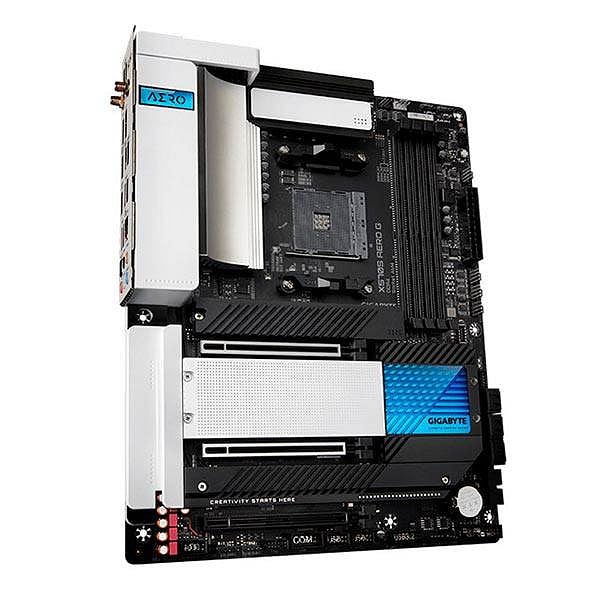

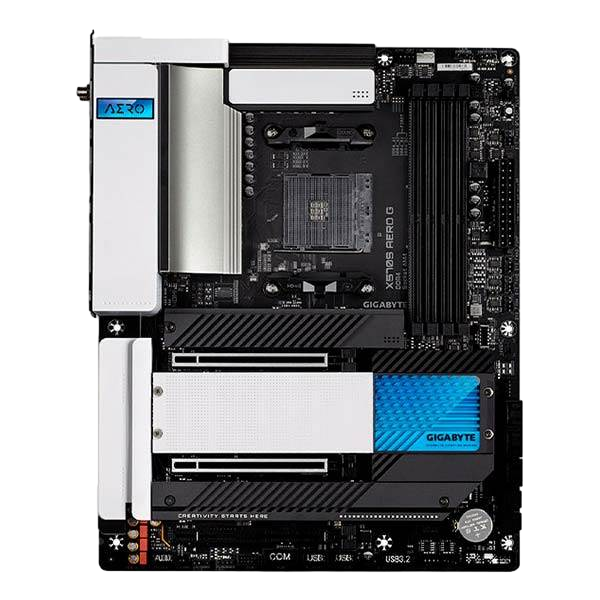

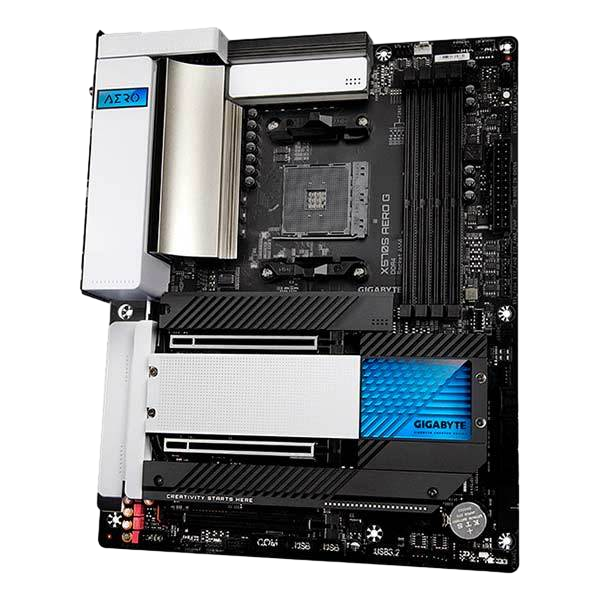

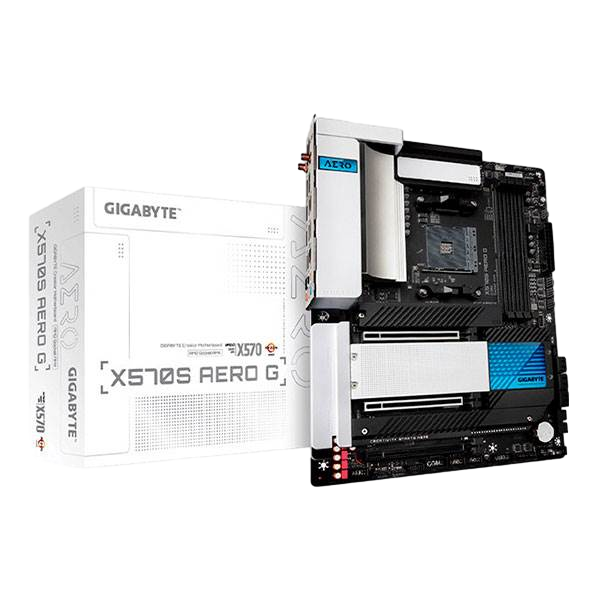

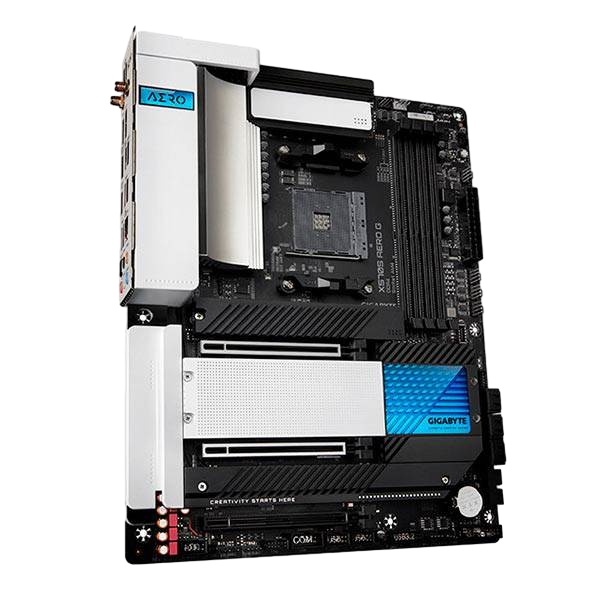

Gigabyte X570S Aero G – Placa Base AM4

Especificaciones:. . Procesador. . AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors. (Por favor, consulte la ''Lista de Soporte de CPUs'' para más información.). . Chipset. . AMD X570. . Memoria. . AMD Ryzen™ 5000 series processors:. Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules. AMD Ryzen™ 4000 G-Series processors:. Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules. AMD Ryzen™ 3000 Series processors:. Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors:. Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. Arquitectura de memoria Dual Channel. Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8. Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8. Soporte para módulos de memoria Extreme Memory Profile (XMP). (Por favor, consulte la ''Lista de Soporte de Memoria'' para más información.). . Gráfica Integrada. . Procesador gráfico integrado. 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz. * Support for drawing tablets and 20V@3A of power delivery.. * Support for DisplayPort 1.4 version and HDCP 2.3.. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz. * Support for HDMI 2.1 version, HDCP 2.3, and HDR.. Maximum shared memory of 16 GB. For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only.. . Audio. . Realtek® ALC1220-VB audio CODEC. * The back panel line out jack supports DSD audio.. Support for DTS:X® Ultra. Audio de alta definición. 2/4/5.1/7.1-channel. Soporte para salida S / PDIF. . LAN. . Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). . Módulo de comunicaciones inalámbricas. . Intel® Wi-Fi 6 AX200 (For PCB rev. 1.0). WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band. BLUETOOTH 5.2. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate. AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1). WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. BLUETOOTH 5.2. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate. (Actual data rate may vary depending on environment and equipment.). . Zócalos de Expansión. . 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU. AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode. AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode. AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU. AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x8 mode. AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x8 mode. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot.. * Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset. Supporting PCIe 4.0*/3.0 x4 mode. * For AMD Ryzen™ 5000 Series/3000 Series Processors only.. The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.. . Interfaz de almacenamiento. . 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:. Supporting PCIe 4.0*/3.0 x4/x2 SSDs. * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.. 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:. Supporting SATA and PCIe 4.0*/3.0 x4/x2 SSDs. * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:. Supporting SATA and PCIe 4.0*/3.0 x4/x2 SSDs. * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.. 6 x SATA 6Gb/s connectors, integrated in the Chipset:. Soporta RAID 0, RAID 1, y RAID 10. * Consulte los conectores internos ''1-8'' para saber los avisos de instalación de los conectores M.2 y SATA.. . Tecnología Multi Gráfica. . Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies. * For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only.. . USB. . CPU. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel. 2 x USB 3.2 Gen 1 ports on the back panel. Chipset. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel. 4 x USB 3.2 Gen 1 ports available through the internal USB headers. Chipset+2 USB 2.0 Hubs. 6 x puerto USB 2.0/1.1 (2 puertos en el panel posterior, 4 puertos disponibles a través de los conectores USB internos). Chipset+ASMedia® USB 3.2 Gen 2×2 Controller. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support. . Conectores Internos E/S. . 1 x conector de alimentación principal ATX 24-pin. 1 x conector de alimentación ATX 12V 8-pin. 1 x 4-pin ATX 12V power connector. 1 x conector del ventilador de la CPU. 1 x conexión del ventilador para refrigeración por agua. 4 x conector para ventilador del sistema. 2 x conectores para los ventiladores del sistema/para las bombas de refrigeración líquida. 2 x Addressable LED strip headers. 2 x RGB LED strip headers. 1 x CPU cooler LED strip/RGB LED strip header. 4 x M.2 Socket 3 connectors. 6 x conector SATA 6Gb/s. 1 x conector del panel frontal. 1 x conector de audio en el panel frontal. 1 x USB Type-C® header, with USB 3.2 Gen 2 support. 2 x USB 3.2 Gen 1 headers. 2 x conectores USB 2.0/1.1. 1 x noise detection header. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only). La función TPM es opcional según las diferentes políticas locales. 1 x Tarjeta expansión Thunderbolt™. 1 x conector del puerto de serie. 1 x Clear CMOS jumper. 2 x cabezales de sensor de temperatura. 1 x Q-Flash Plus button. . Panel E/S Trasero. . 2 x puerto USB 2.0/1.1. 2 x conectores de antena SMA (2T2R). 1 x HDMI. 1 x DisplayPort In port. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support. 1 x USB Type-C® port, with USB 3.2 Gen 1 support. 4 x USB 3.2 Gen 2 Type-A ports (red). 2 x USB 3.2 Gen 1 ports. 1 x Puerto RJ-45. 1 x optical S/PDIF Out connector. 5 x audio jacks. . Controlador E/S. . Chip controlador E/S iTE®. . BIOS. . 1 x 256 Mbit flash. Licencia para uso de UEFI BIOS de AMI. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. . Formato. . Factor de forma ATX, 30.5cm x 24.4cm
