Descripción del producto

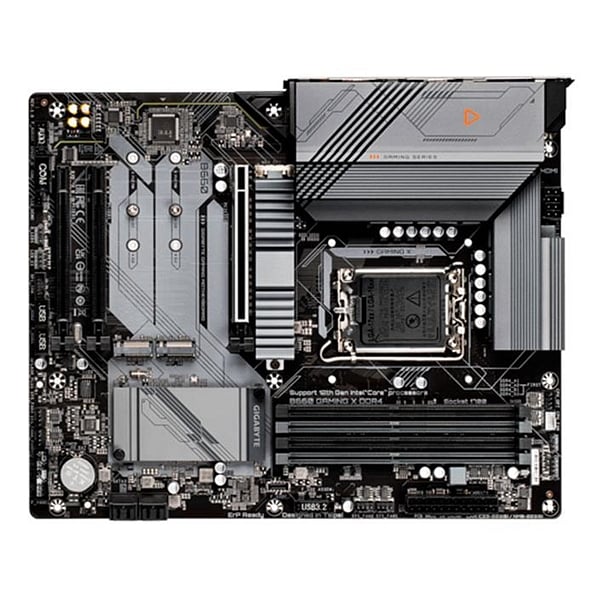

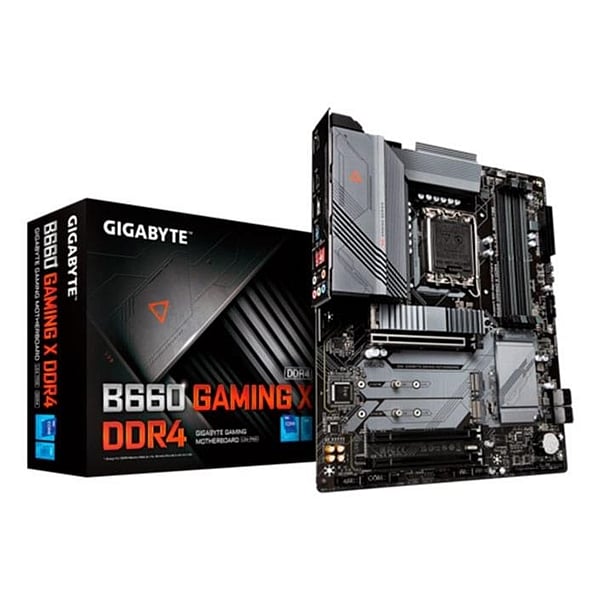

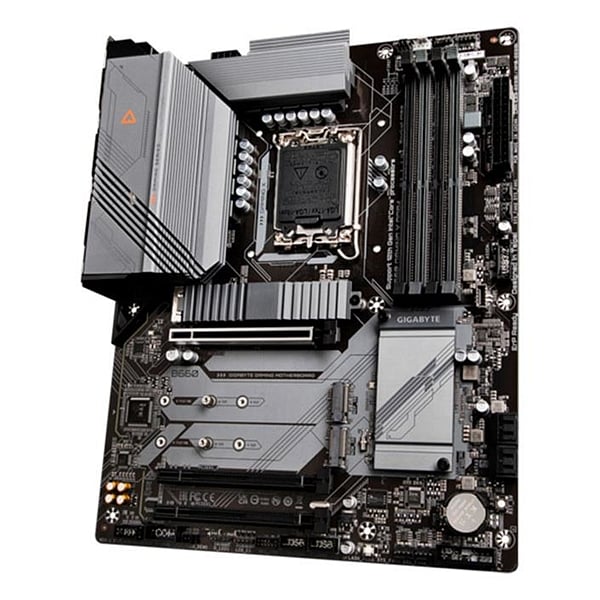

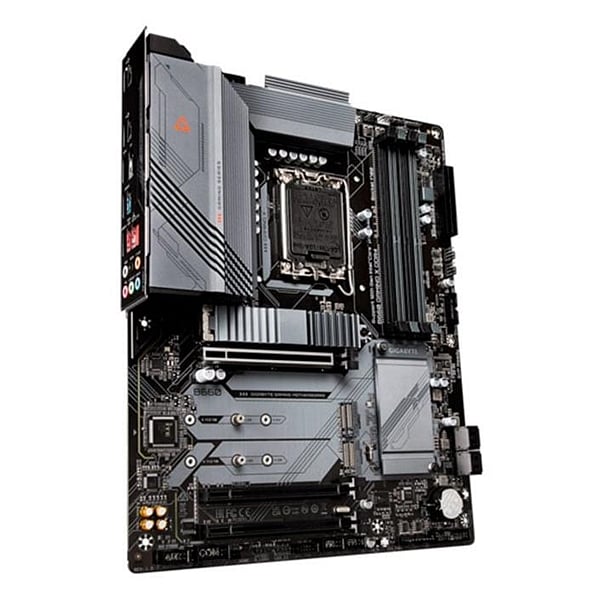

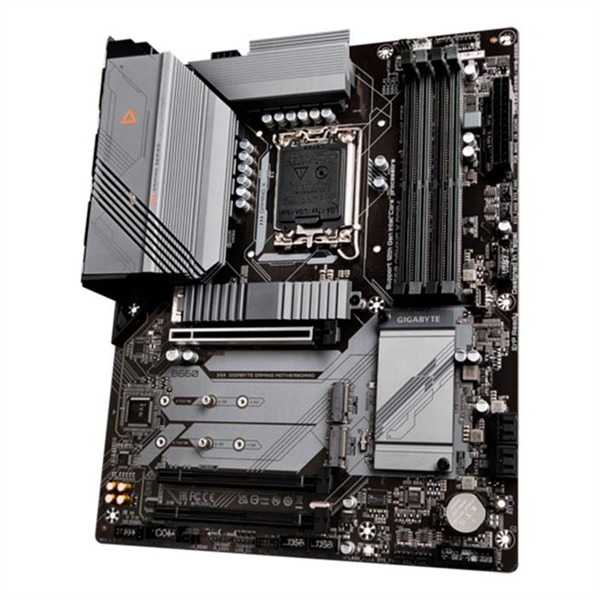

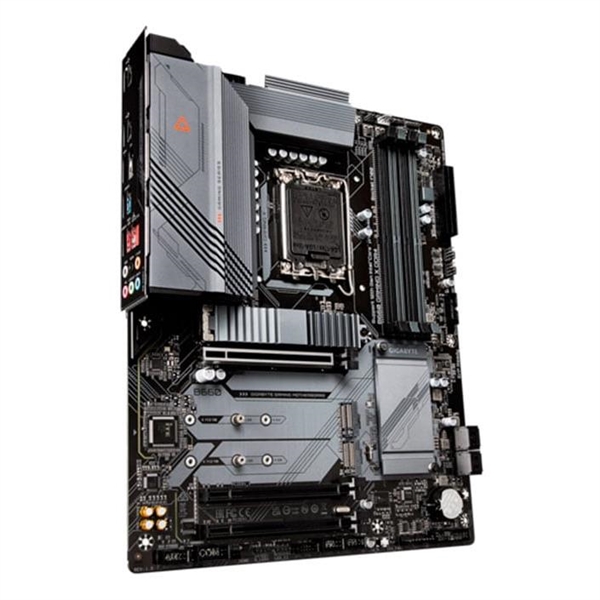

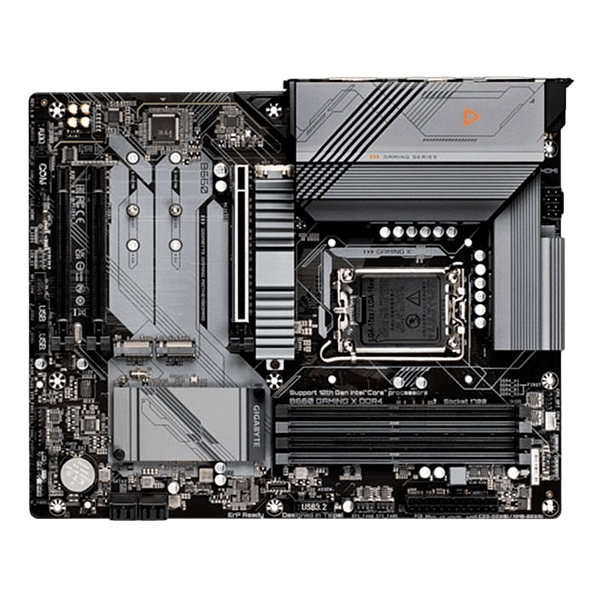

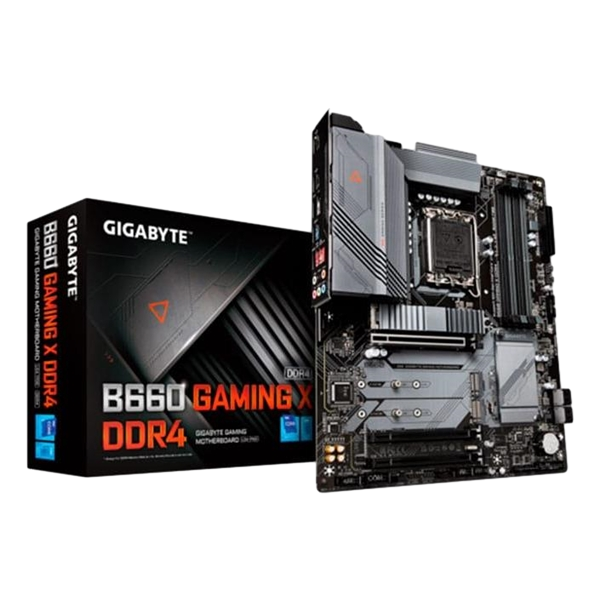

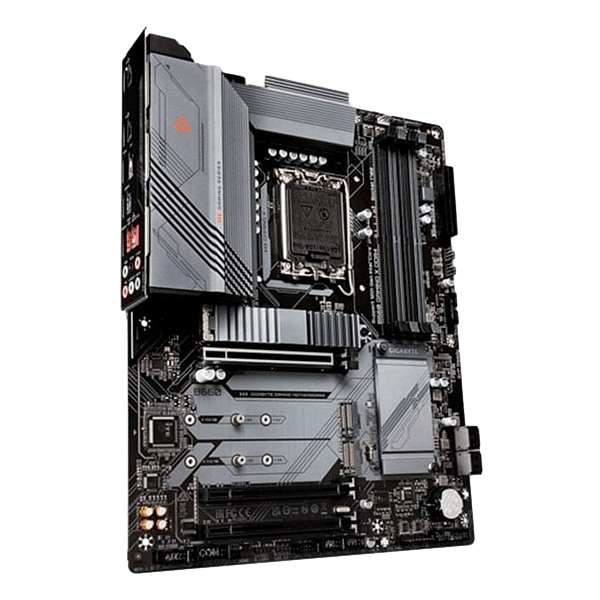

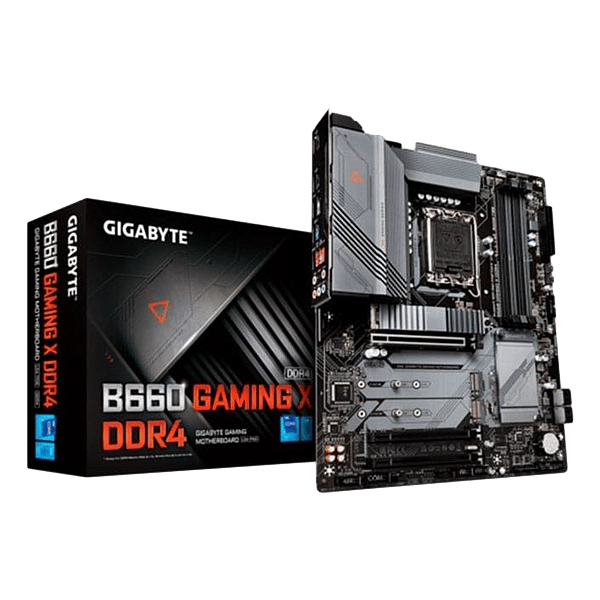

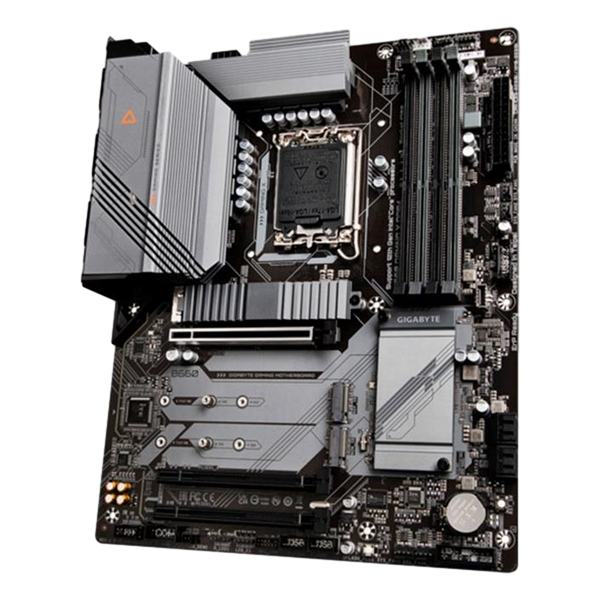

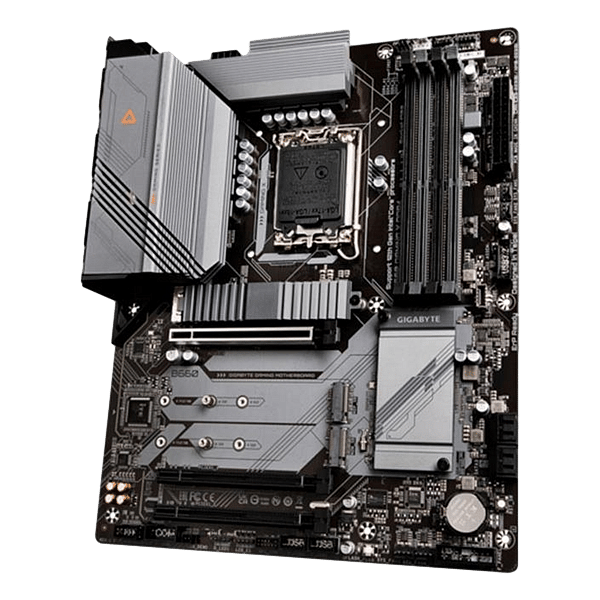

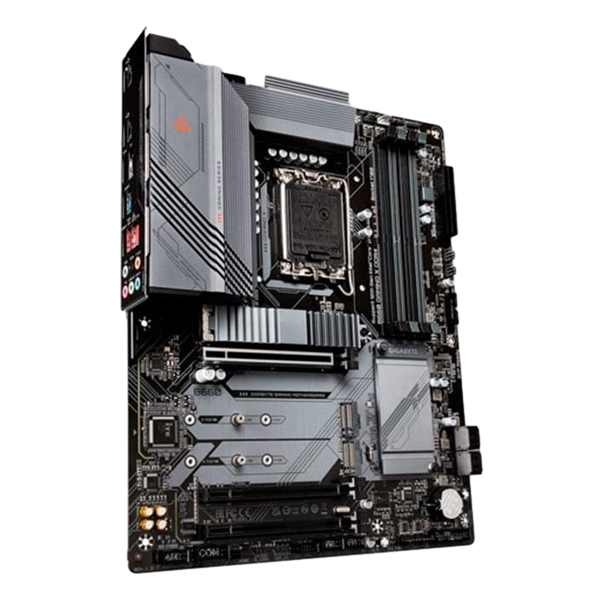

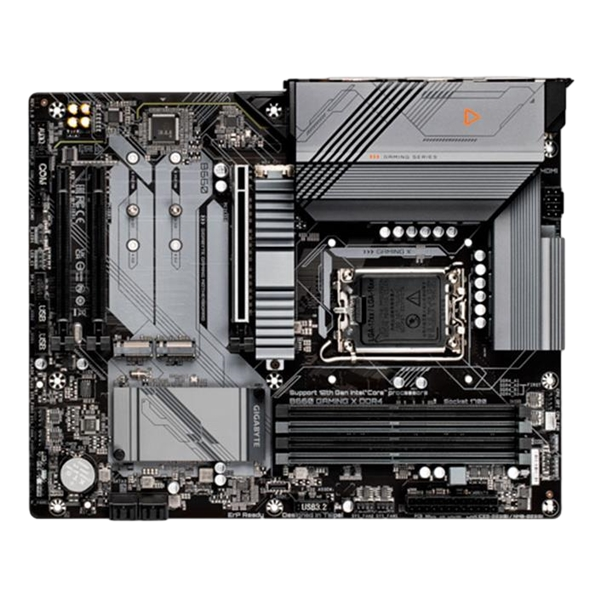

Gigabyte B660 Gaming X DDR4 – Placa Base Intel 1700
Tipo de producto
Placa Base
Chipset
Intel B660 Express
Socket
Intel socket LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
Memoria RAM
4 x zócalos DIMM DDR4 que admiten hasta 128 GB (32 GB de capacidad DIMM individual) de memoria del sistema
Arquitectura de memoria Dual Channel
Compatible con módulo de memoria DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz
Socket M.2
3 x M.2 Socket 3 connectors
Red
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Puertos USB
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Conectores internos
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

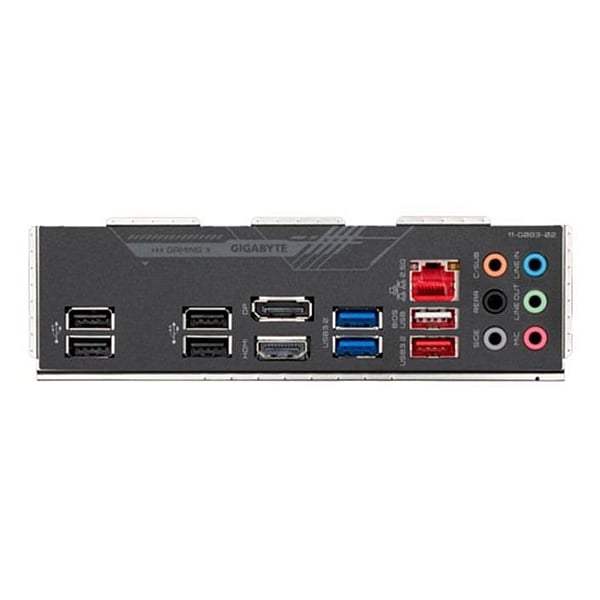

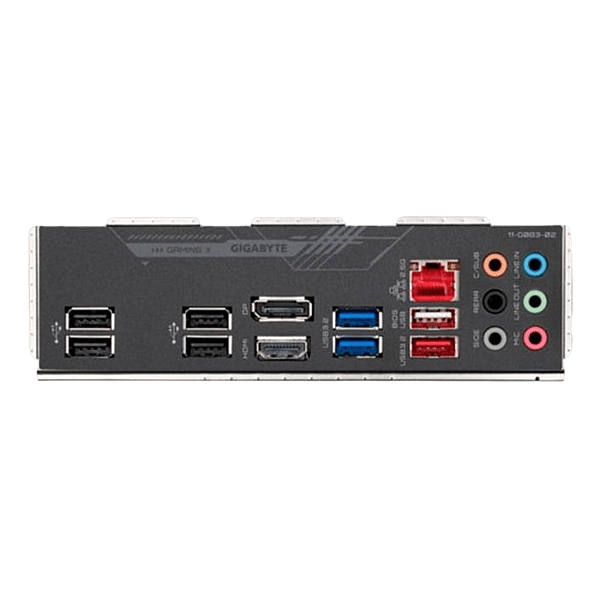

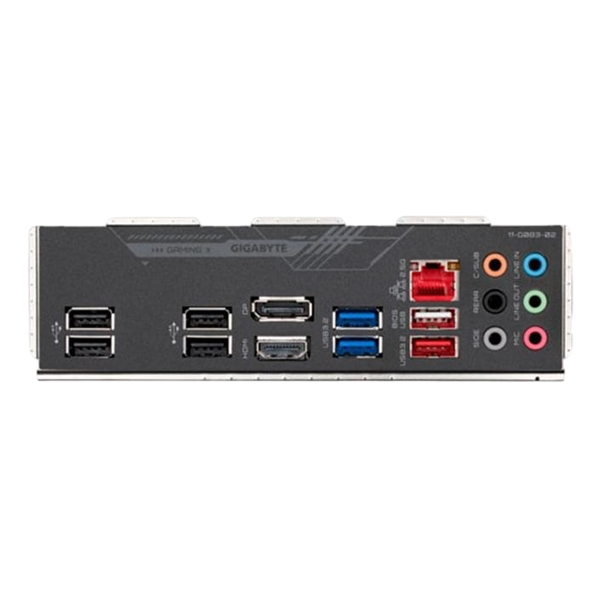

Panel trasero
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI 2.0 port
1 x RJ-45 port
6 x audio jacks
