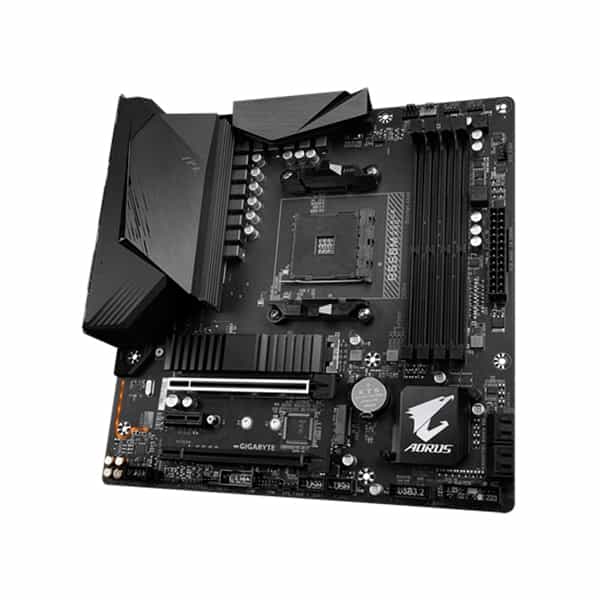

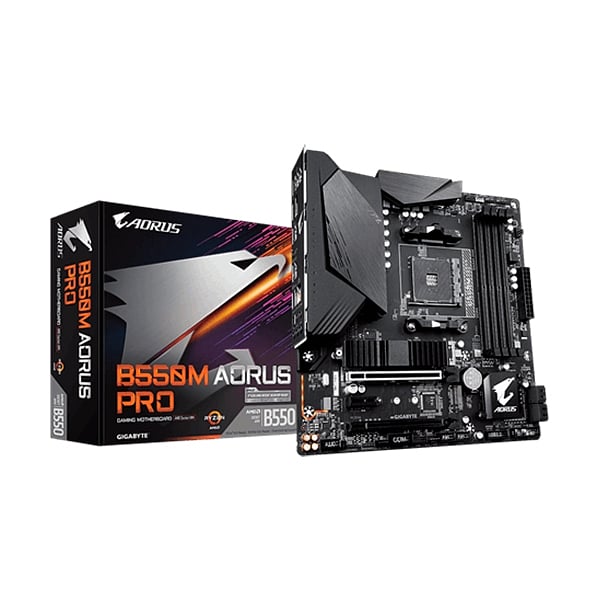

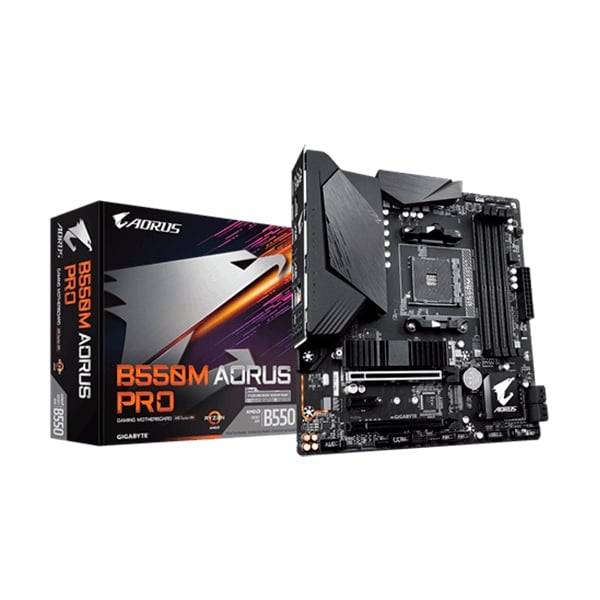

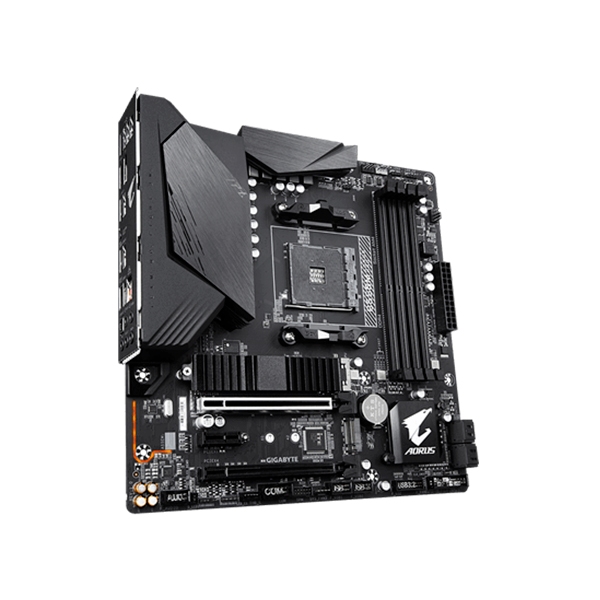

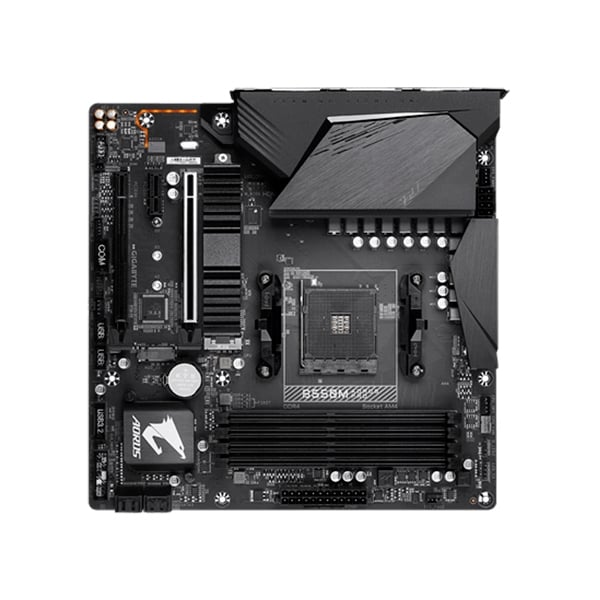

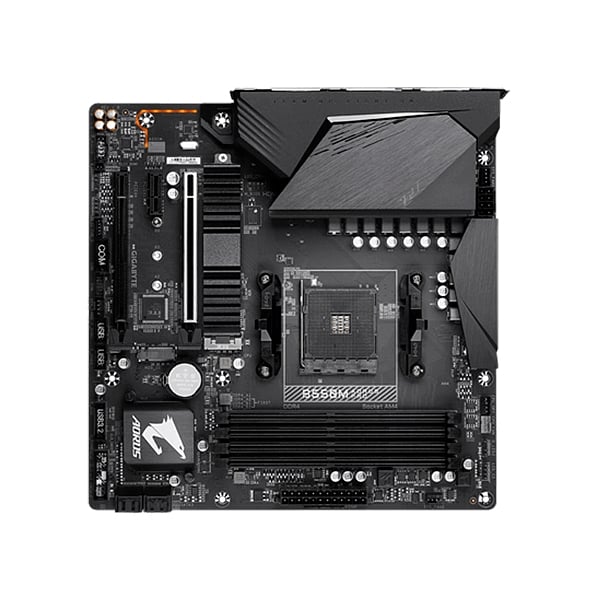

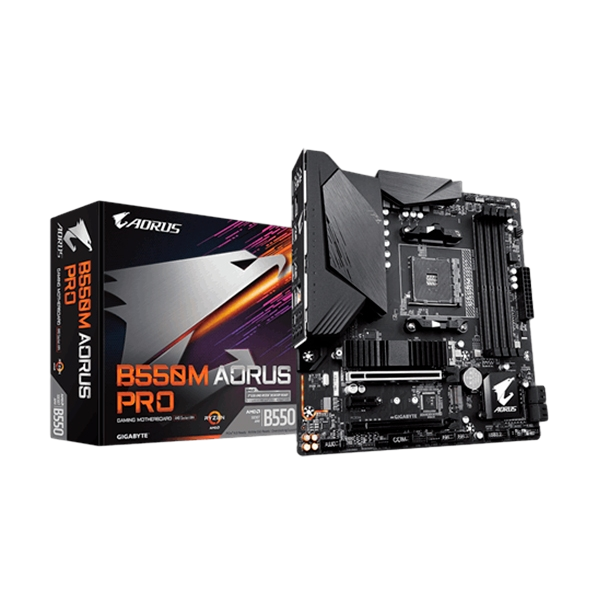

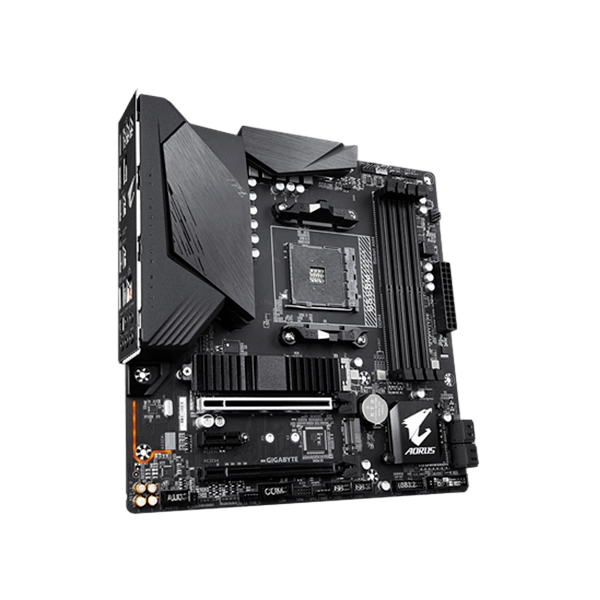

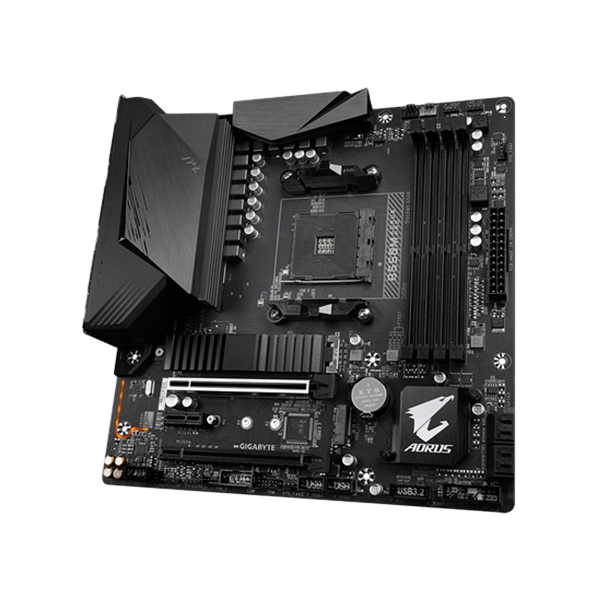

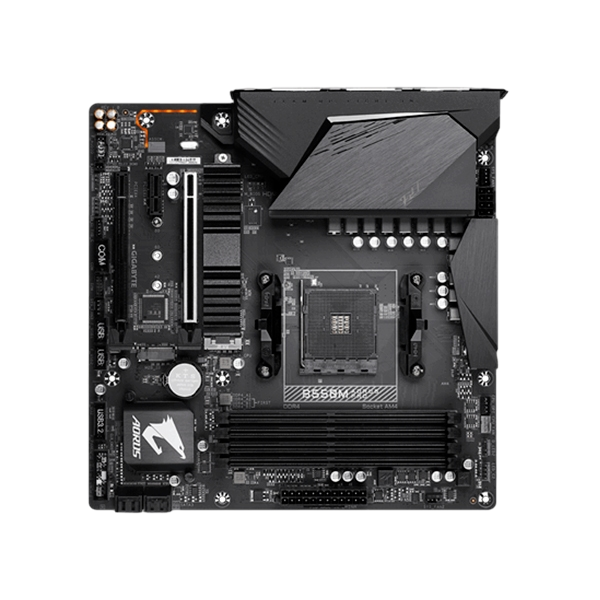

Gigabyte B550M Aorus Pro – Placa Base

Descripción del producto

Gigabyte B550M Aorus Pro

Tipo de Producto

Placa Base

Chipset

AMD B550

Socket

Socket AM4

Formato

ATX

Memoria RAM

4 x DDR4 DIMM 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Memoria Máxima

128 GB (32GB por ranura)

Gráfica Integrada

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz

Interfaz de Almacenamiento

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 4 x SATA 6Gb/s connectors, integrated in the Chipset:

Red

Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Audio

Realtek® ALC1200 codec Audio de alta definición 2/4/5.1/7.1-channel Soporte para salida S / PDIF

Puertos USB

Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x puertos USB 2.0/1.1 disponible a través de los conectores USB internos de la placa base CPU: 4 x USB 3.2 Gen 1 ports on the back panel

Conectores Internos

1 x conector de alimentación principal ATX 24-pin 1 x conector de alimentación ATX 12V 8-pin 1 x conector del ventilador de la CPU 1 x conexión del ventilador para refrigeración por agua 3 x conector del ventilador del sistema 2 x Addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x conectores M.2 Socket 3 4 x conectores SATA 6 Gb / s 1 x conector del panel frontal 1 x conector de audio en el panel frontal 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x conector del puerto de serie 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Thunderbolt header

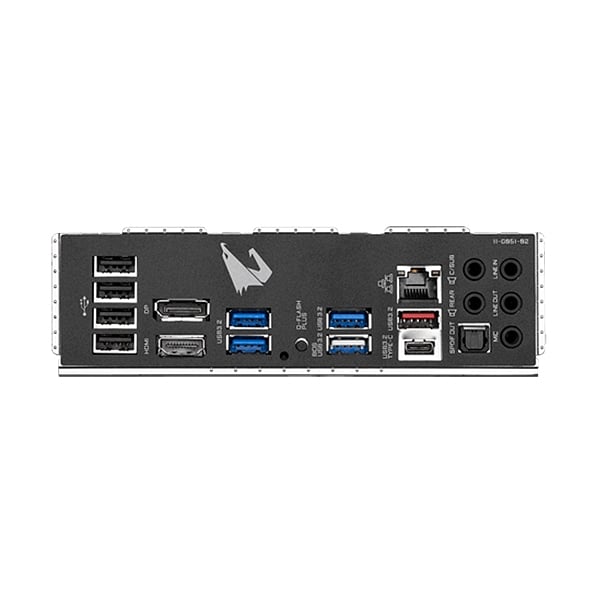

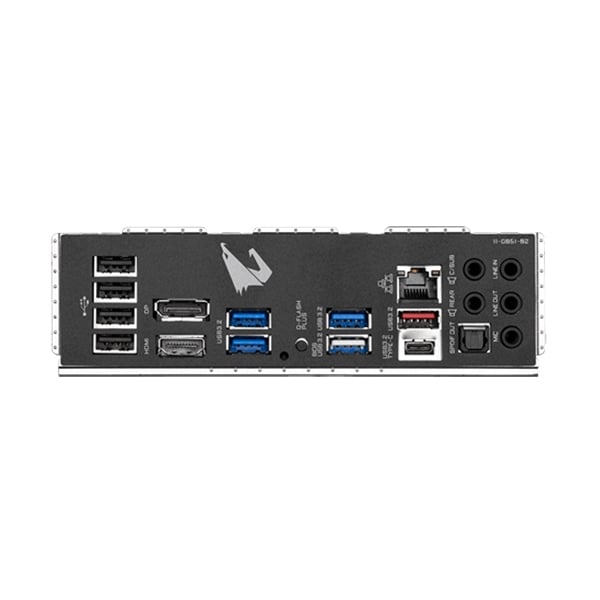

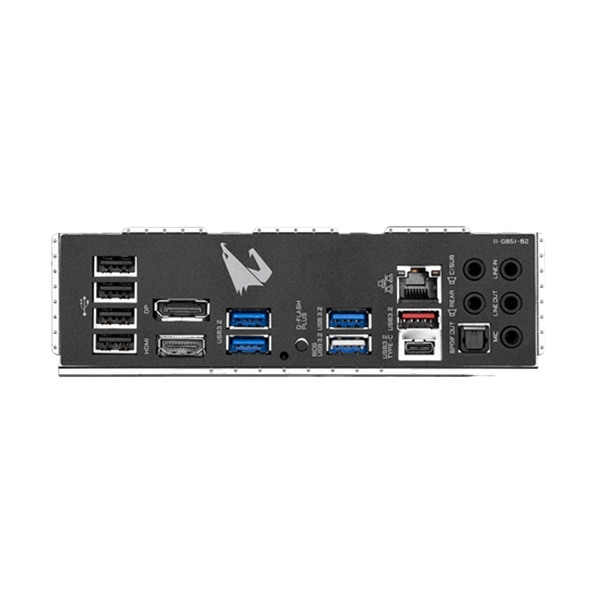

Panel Trasero

4 x puertos USB 2.0/1.1 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x Puerto RJ-45 1 x conector óptico S/PDIF Out 5 x audio jacks
