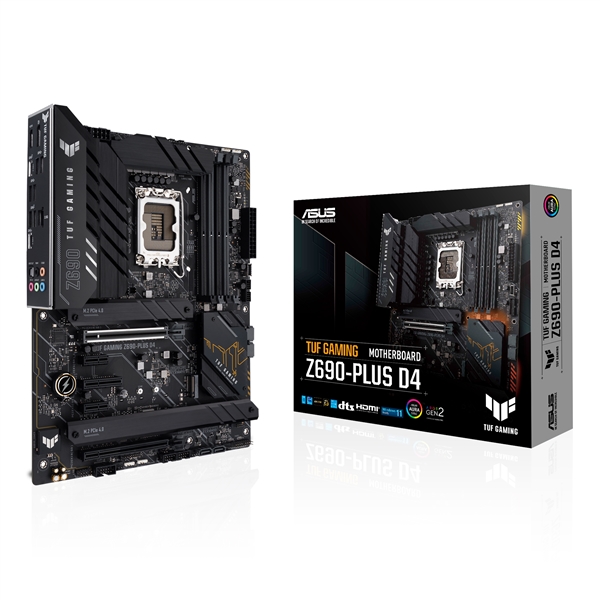

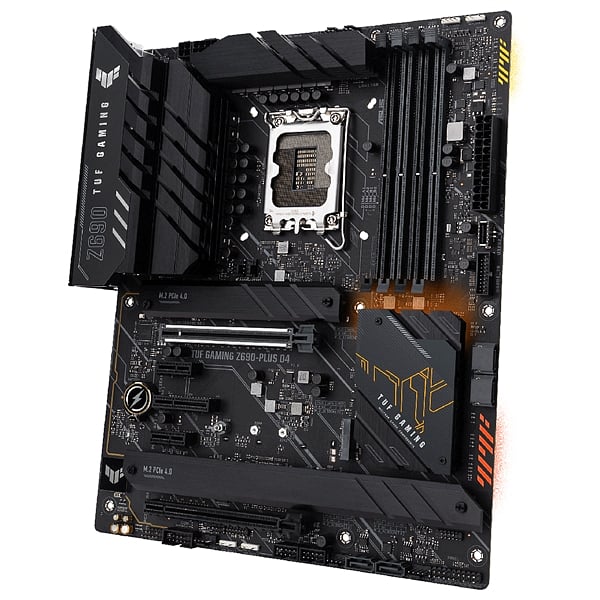

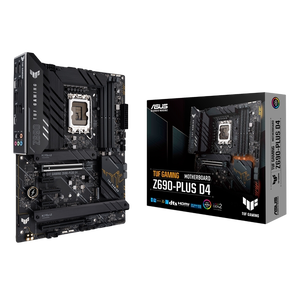

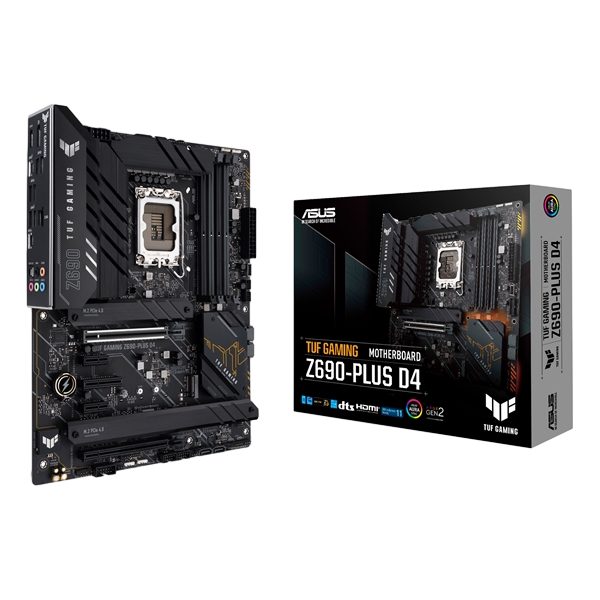

Asus TUF Gaming Z690-Plus / DDR4 – Placa Base Intel 1700

Descripción del producto

TUF GAMING Z690-PLUS D4

Tipo de producto

Placa Base

Chipset

Intel Z690

Socket

Intel Socket LGA1700 para procesadores de 12ª Generación Intel Core, Pentium Gold y Celeron.

Formato

ATX

Memoria RAM

«4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Memoria máxima

128 GB

Socket M.2

4 x Ranuras M.2
4 x Puertos SATA 6Gb/s

Red

1 x Intel® 2.5Gb Ethernet
TUF LANGuard

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
7.1 canales

Puertos USB

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Conectores internos

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

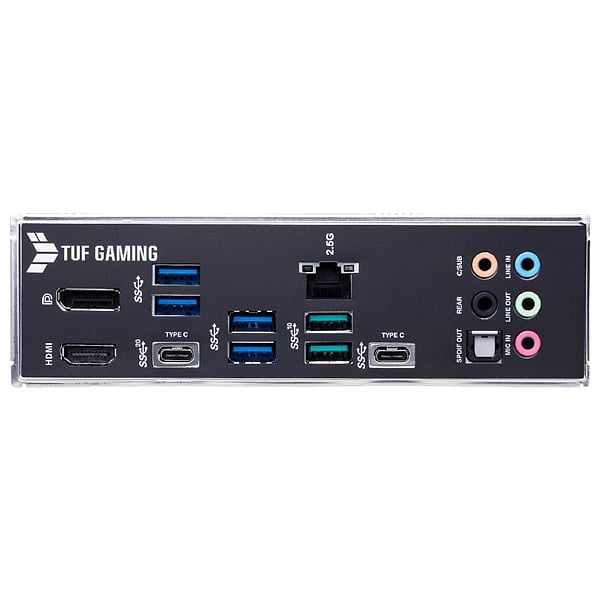

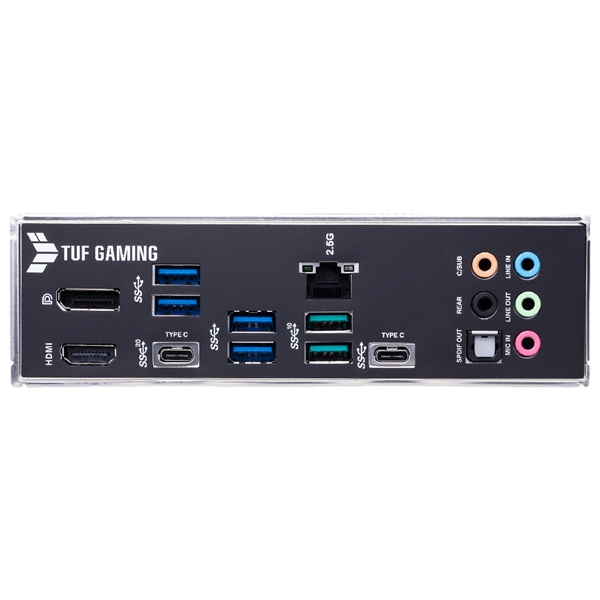

Panel trasero

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
