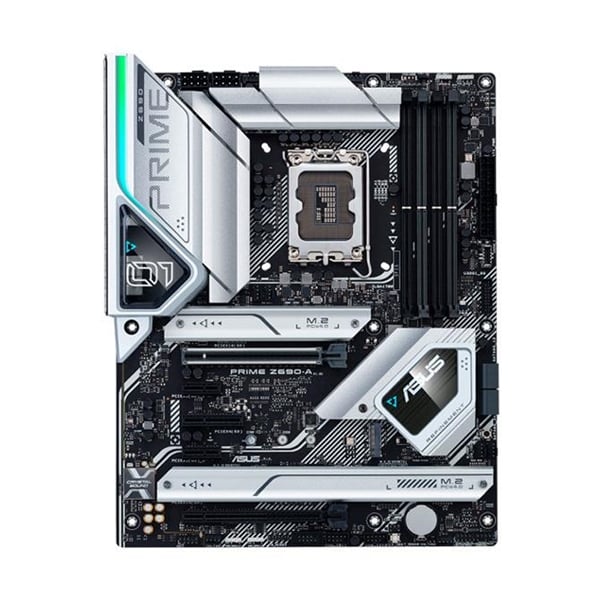

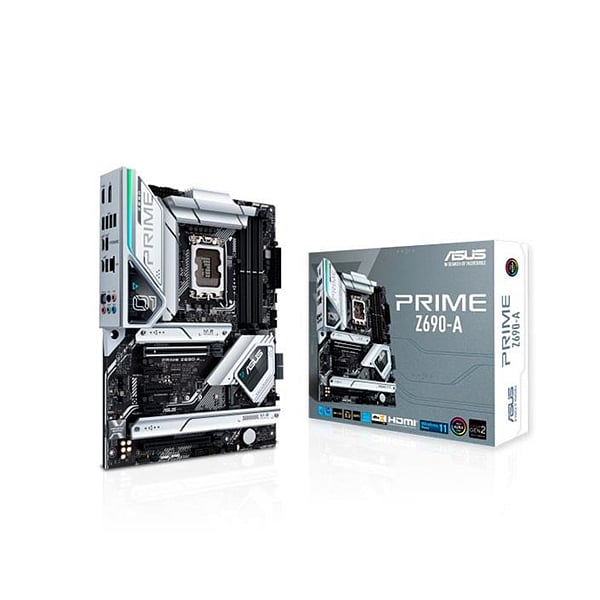

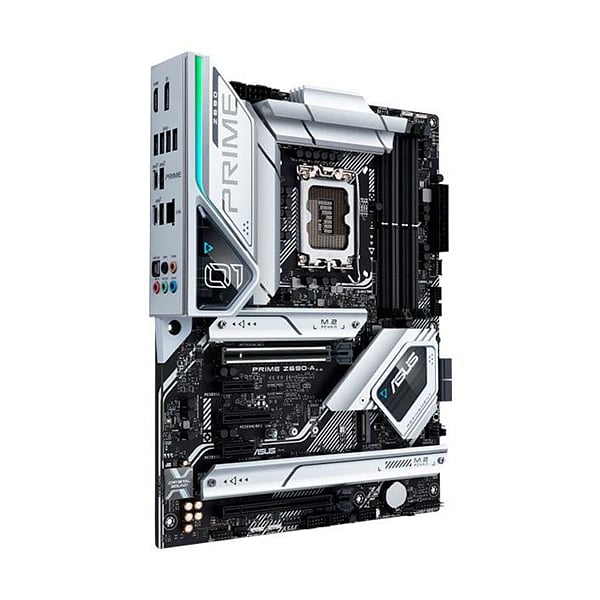

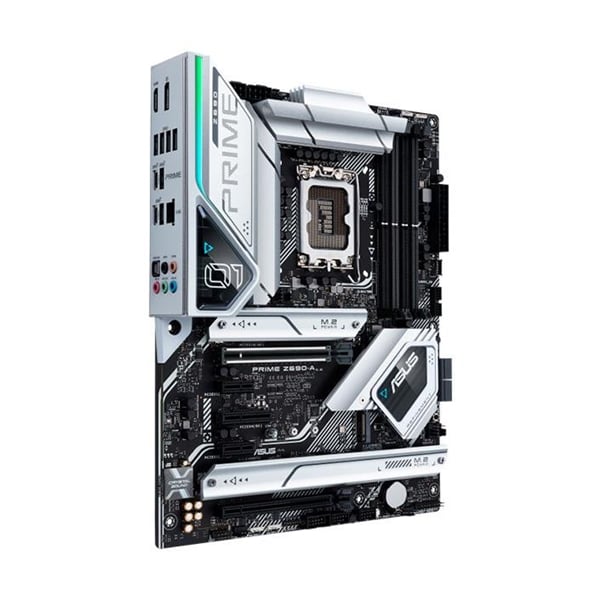

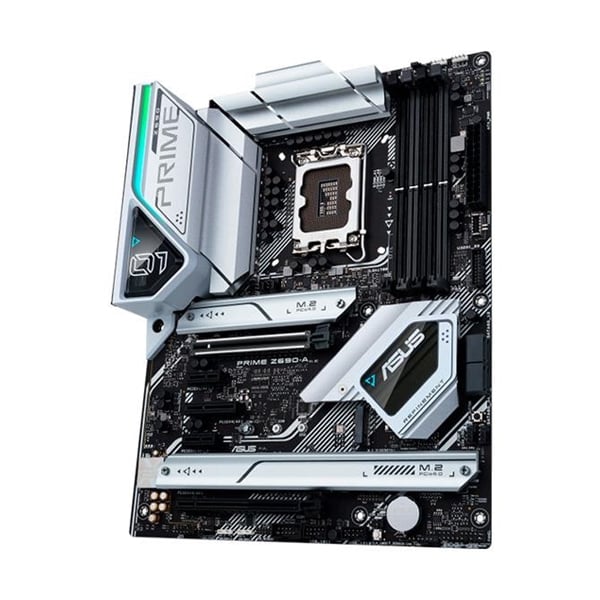

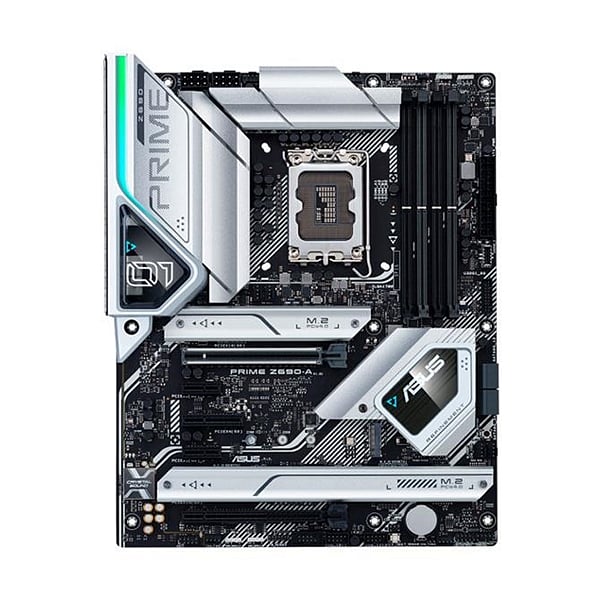

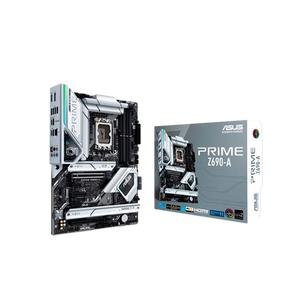

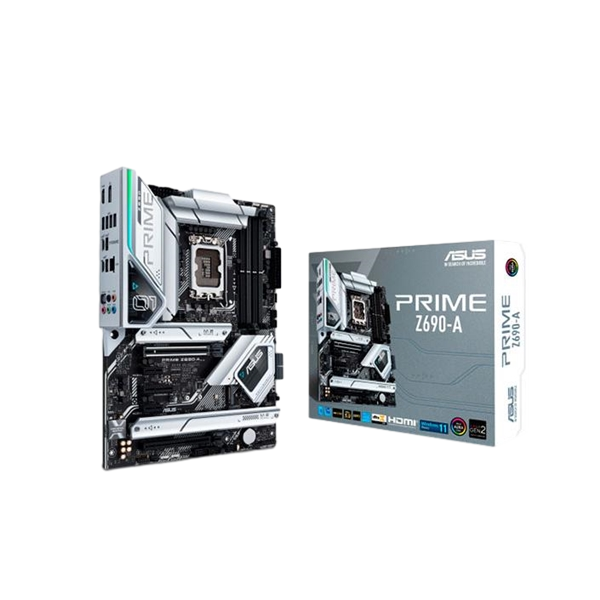

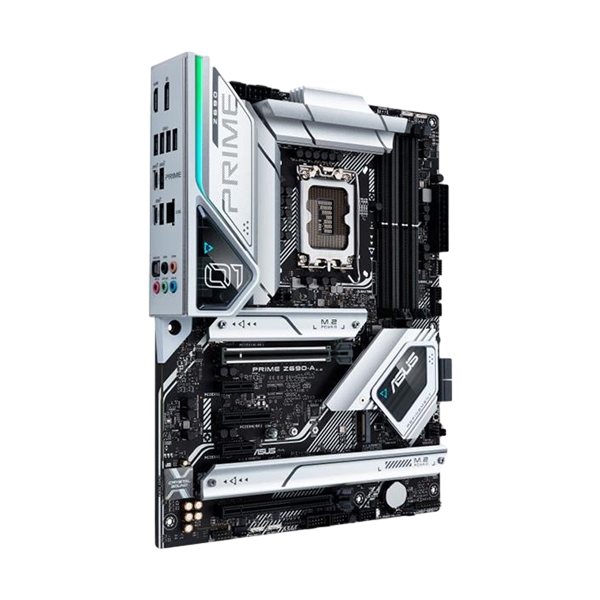

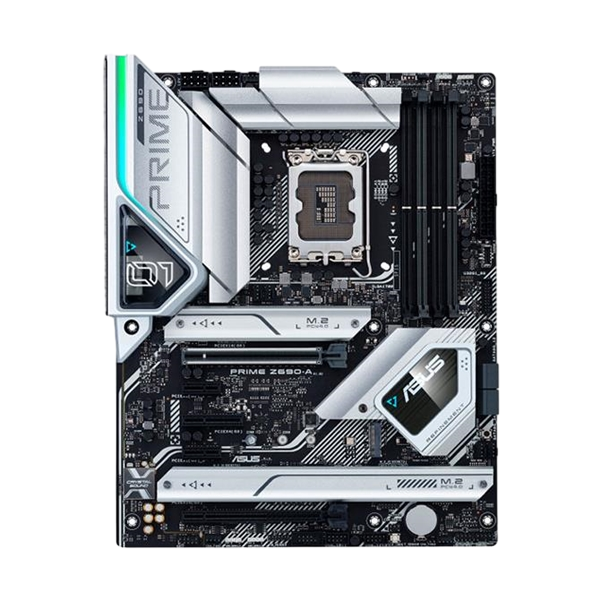

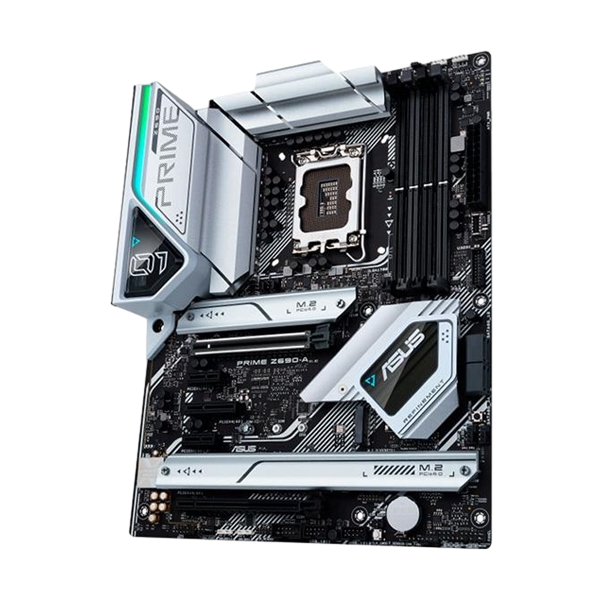

Asus Prime Z690-A / DDR5 – Placa Base Intel 1700

Descripción del producto

PRIME Z690-A

Tipo de producto

Placa Base

Chipset

Intel Z690

Socket

Intel Socket LGA1700 para procesadores de 12ª Generación Intel Core, Pentium Gold y Celeron.

Formato

ATX

Memoria RAM

4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz Non-ECC, Un-buffered Memory

Memoria máxima

128 GB

Socket M.2

4 x Ranuras M.2
4 x Puertos SATA 6Gb/s

Red

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
7.1 canales

Puertos USB

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Conectores internos

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

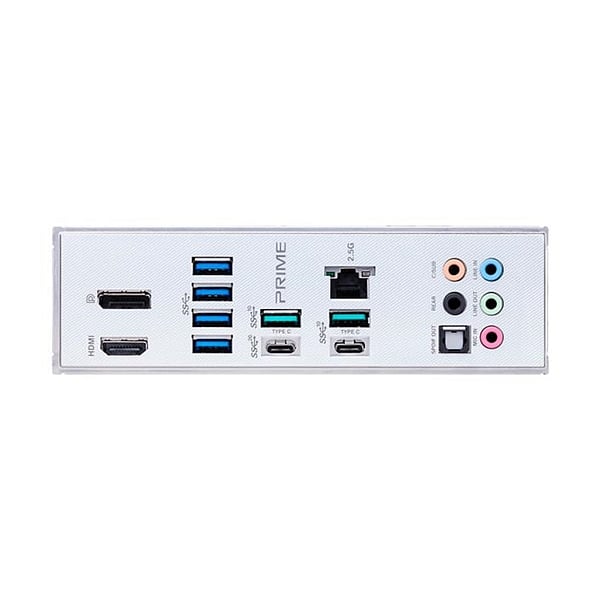

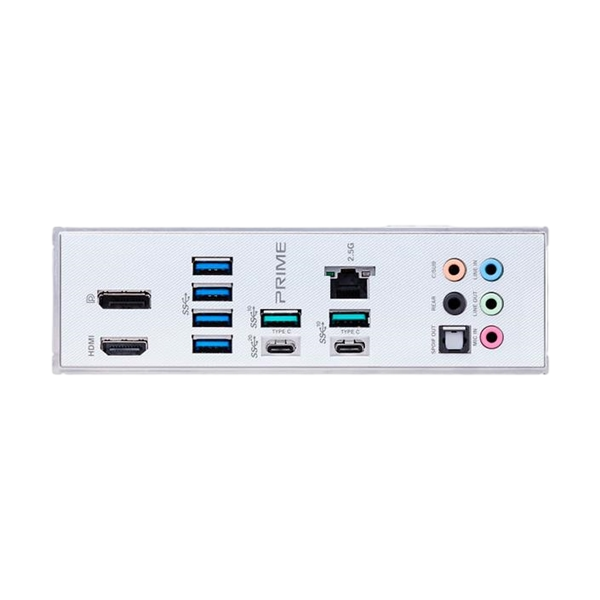

Panel trasero

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C® )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
