SÓLO QUEDAN 2

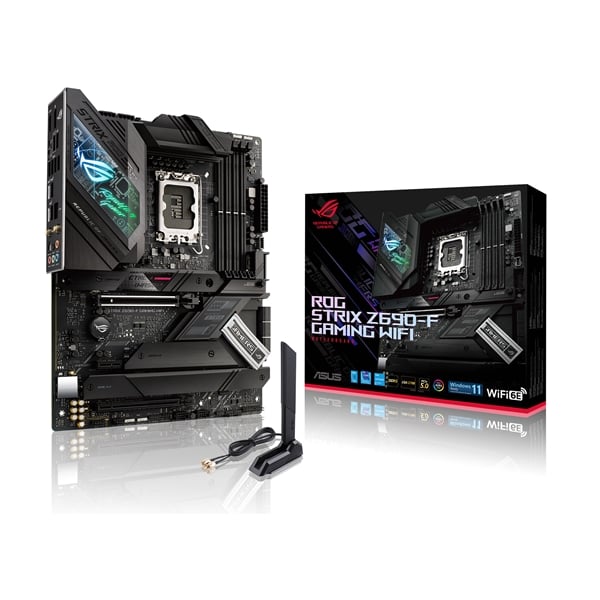

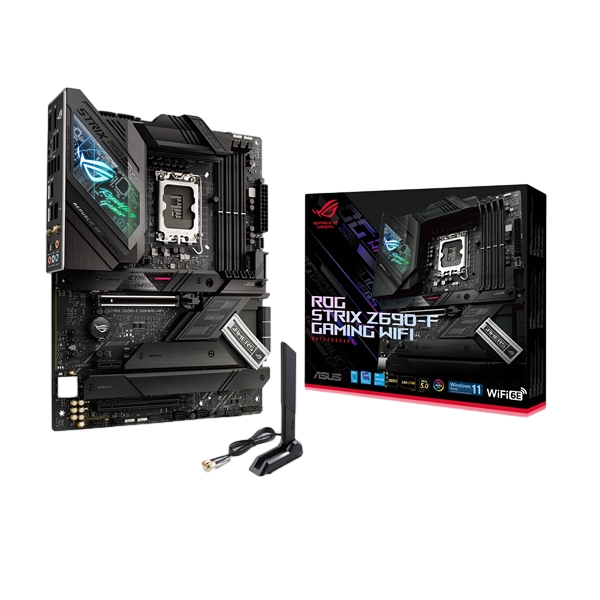

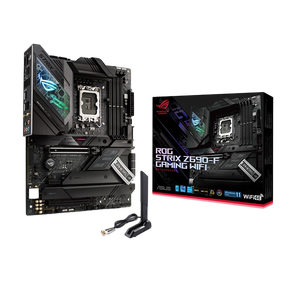

Asus ROG Strix Z690-F Gaming / WiFi AX / DDR5 – Placa Base Intel 1700
518 ,59 €
(428,59€ sin IVA)
Fináncialo al instante
Sólo quedan 2 en stock
Envío Preferente Recíbelo en 1-5 días
Recogida Recógelo en 1-5 días
Comprados juntos habitualmente
841,65€ por los 2 articulo(s)
90MB18M0-M0EAY0 Asus ROG Strix Z690-F Gaming WiFi AX – Placa Base Intel 1700
Marca
ASUS (Republic Of Gamers)
Descripción del producto
ROG STRIX Z690-F GAMING WIFI
Tipo de producto
Placa Base
Chipset
Intel Z690
Socket
Intel Socket LGA1700 para procesadores de 12ª Generación Intel Core, Pentium Gold y Celeron.
Formato
ATX
Memoria RAM
4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz MHz Non-ECC, Un-buffered Memory
Memoria máxima
128 GB
Socket M.2
4 x Ranuras M.2
6 x Puertos SATA 6Gb/s
6 x Puertos SATA 6Gb/s
Red
1 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
«Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
** Bluetooth v5.2 function will be ready in in Windows 11 or later. «
ASUS LANGuard
«Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
** Bluetooth v5.2 function will be ready in in Windows 11 or later. «
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
7.1 canales
7.1 canales
Puertos USB
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Conectores internos
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB header
1 x BMC header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB header
1 x BMC header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Panel trasero
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Comprar ROG STRIX Z690-F GAMING WIFI
Basado en 1 reseña
Agrega una reseña
Debes iniciar sesión para publicar una reseña.
Estas son opiniones 100% reales. Publicamos todas las opiniones recibidas, ya sean positivas o negativas, y solo filtramos aquellas que no estén relacionadas directamente con el producto o servicio ofrecido o bien no respeten nuestros Términos y Condiciones.
Preguntas y respuestas de los usuarios sobre este producto
No hay preguntas aún. Sé el primero en hacer una pregunta acerca de este producto.
DannyVII (propietario verificado) –
Envio rapido y un placa base estupenda! Tiene un bios muy detallado y util y el diseño se lo hace muy facil la instalacion de todos componentes.
DannyVII –
