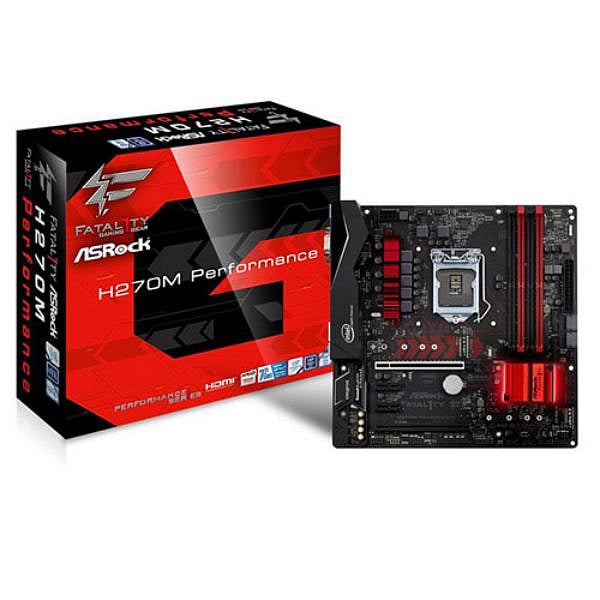

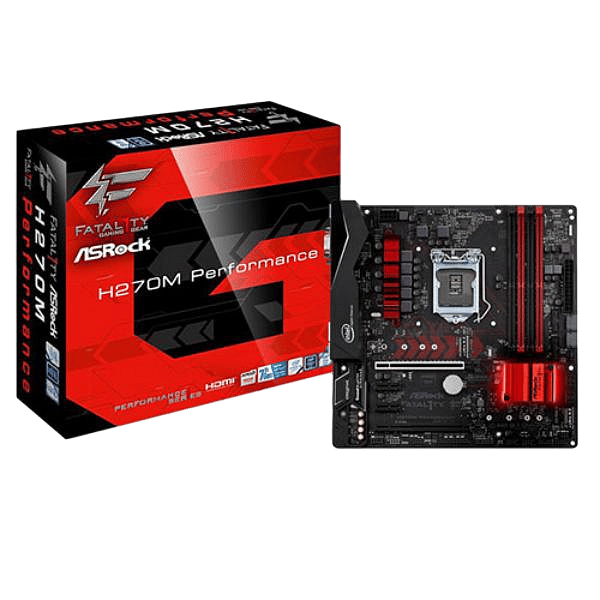

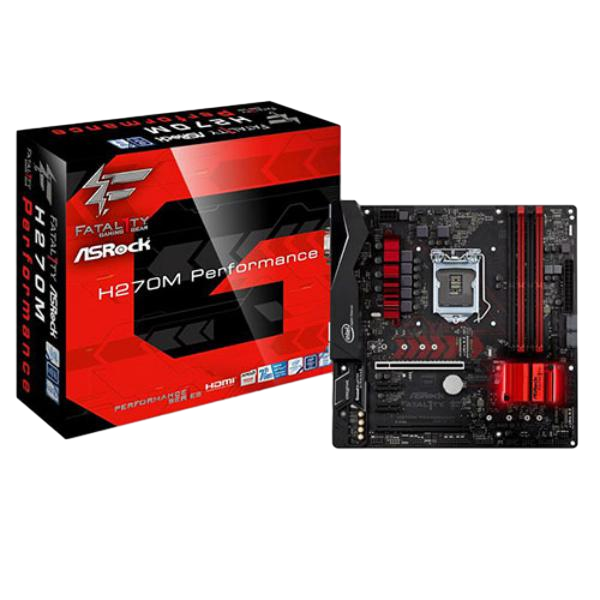

Asrock Fatal1ty H270M Performance – Placa Base
Enviarme una notificación cuando el producto vuelva a estar en stock.
Pendiente de reposición
Placa base – Formato Micro ATX – Socket LGA 1151 – Chipset Intel H270 – Soporte Memoria RAM DDR4 2400 MHz – USB 3.0, M.2 – Gigabit PHY Intel I219V LAN – VGA, DVI-D, HDMI – Realtek ALC892 Codec Audio
Marca
ASROCK
Descripción del producto
Asrock Fatal1ty H270M Performance
Chipset
Intel H270
Socket
LGA 1151
Formato
Micro ATX
Memoria RAM
4 x DDR4 DIMM
Memoria máxima
64 GB
Frecuencias soportadas
Hasta 2400 MHz
Socket SSD M.2
2 x M.2 Socket (2230/2242/2260/2280)
PCI Express Gen3 x4 (32 Gb/s)
PCI Express Gen3 x4 (32 Gb/s)
Red
Giga PHY Intel I219V
Audio
Realtek ALC892
7.1 CH HD Audio
7.1 CH HD Audio
USB 2.0
3
USB 3.0
5 (Type A)
1 (Type C)
1 (Type C)
Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
1 x USB 2.0 Port
1 x Fatal1ty Mouse Port
3 x USB 3.0 Type-A Ports
1 x USB 3.0 Type-C Port
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
1 x USB 2.0 Port
1 x Fatal1ty Mouse Port
3 x USB 3.0 Type-A Ports
1 x USB 3.0 Type-C Port
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Panel interno
1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x AURA RGB LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers support 4 USB 2.0 ports
2 x USB 3.0 Headers support 4 USB 3.0 ports
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x AURA RGB LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers support 4 USB 2.0 ports
2 x USB 3.0 Headers support 4 USB 3.0 ports
Dimensiones
24.4 x 24.4 cm
Otros
Iluminación RGB LED
